Recover a USB Stick

On this page i am going to explain how to recover your self made USB Rubber Ducky to a regular USB Stick

So now that u made your own USB Rubber Ducky using my guide HERE

you may come to a point where u want to recover the converted stick back to a normal Flash drive

you also need to recover it to a normal flash drive every time you want to flash a new payload on the USB Stick

so now i am going to explain you how to do this

Step One:

Download this file: HERE

For convenience save this file to c:\fw\fw_bn

This will give u this file as a result at that location

iconbadusb

MPALL_v3.71.0A_03_MLC(UP03_64pin).rar

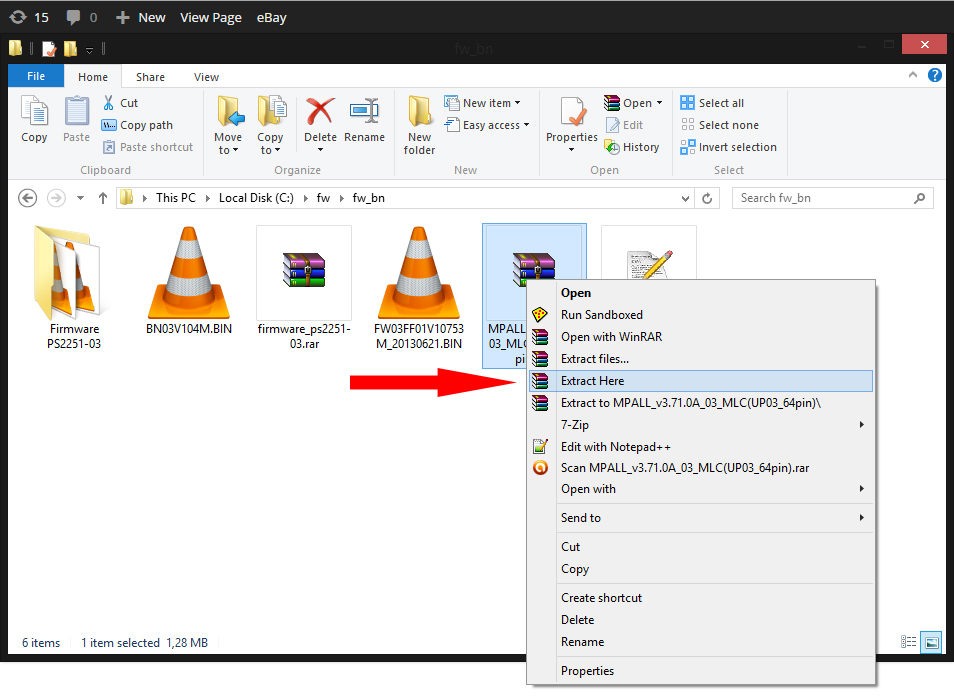

Now right click on the file and select Extract Here

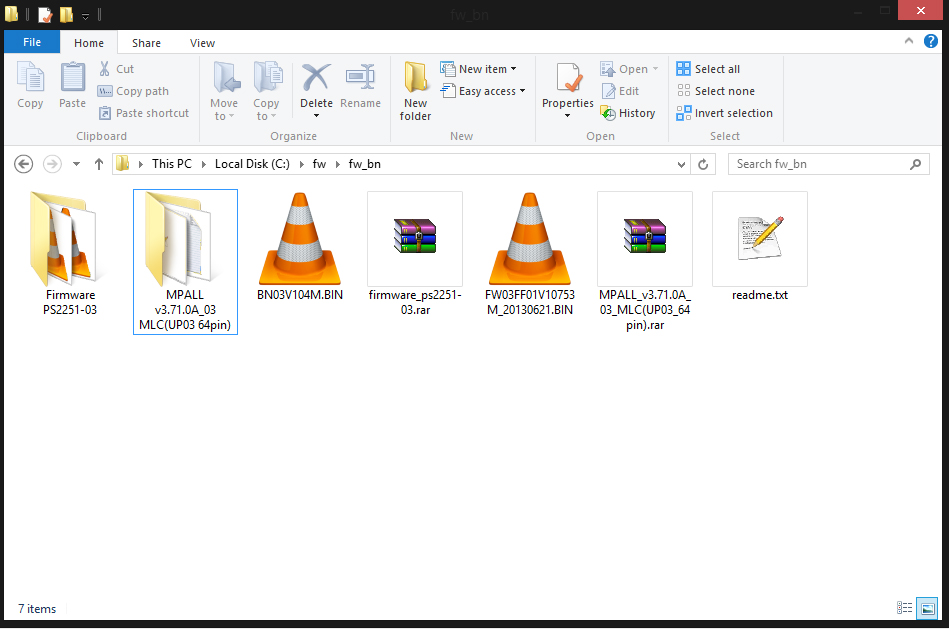

badrec0this will give u this folder

badrec1Open the folder MPALLv3.710A_03MLC(UP03 64pin)

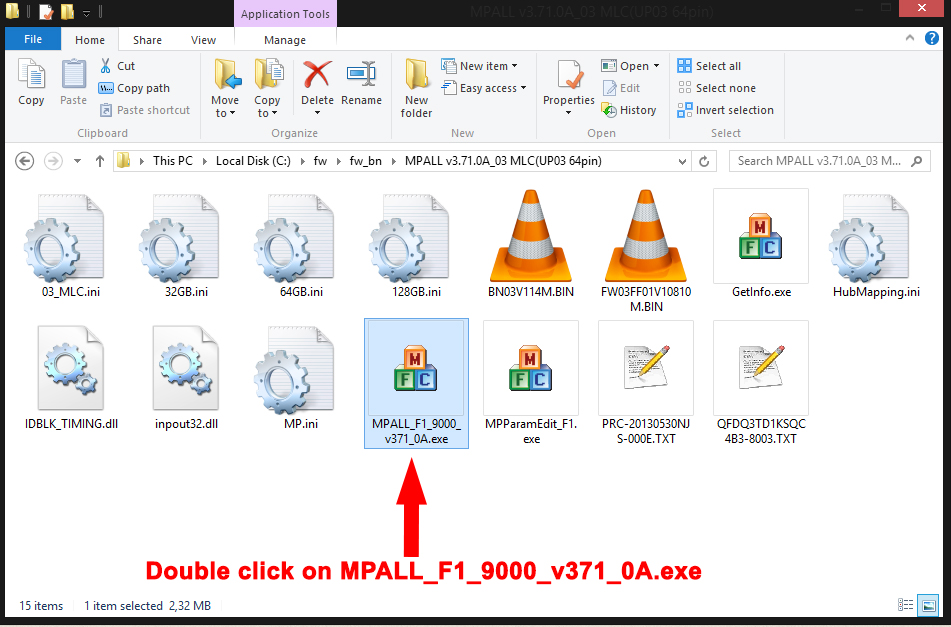

u should then see this

badrec2

Now double click on MPALL_F1_9000_v371_0A.exe

u should then be in the software tool to recover the USB Stick

like seen below

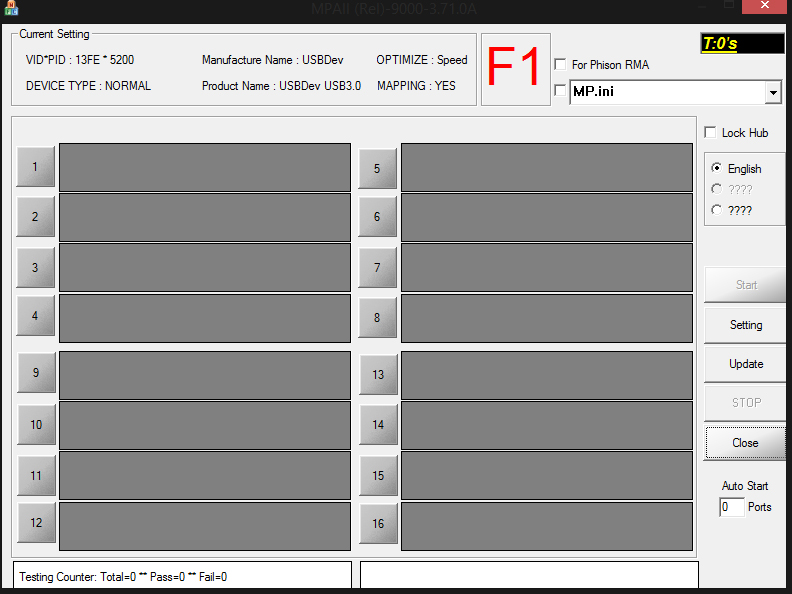

badrec3

badrec333

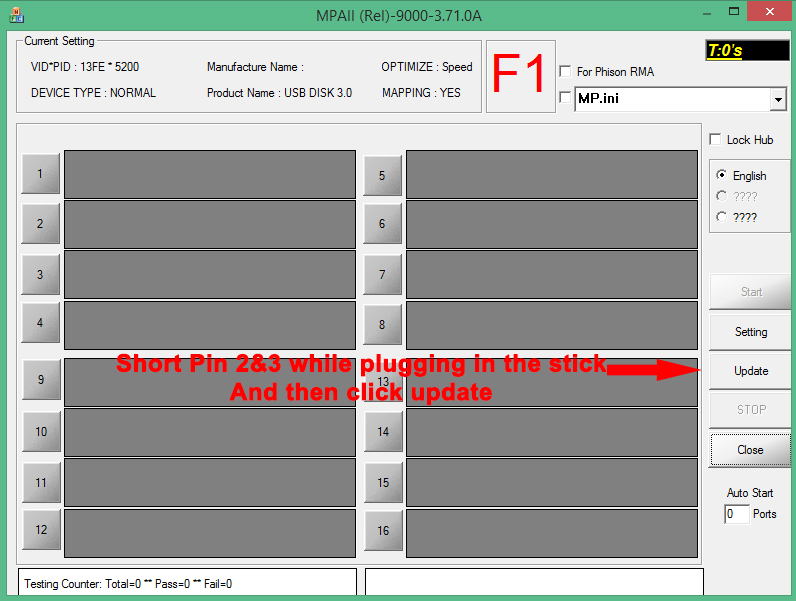

PinsToShortUponPlugInForBootMode

Keep shorting this pins while plugging in the USB Stick

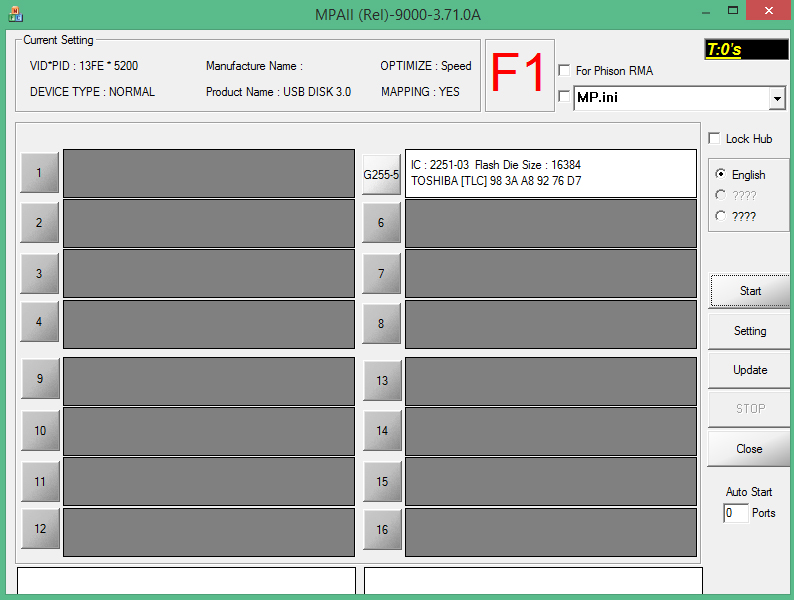

badrec33

badrec44

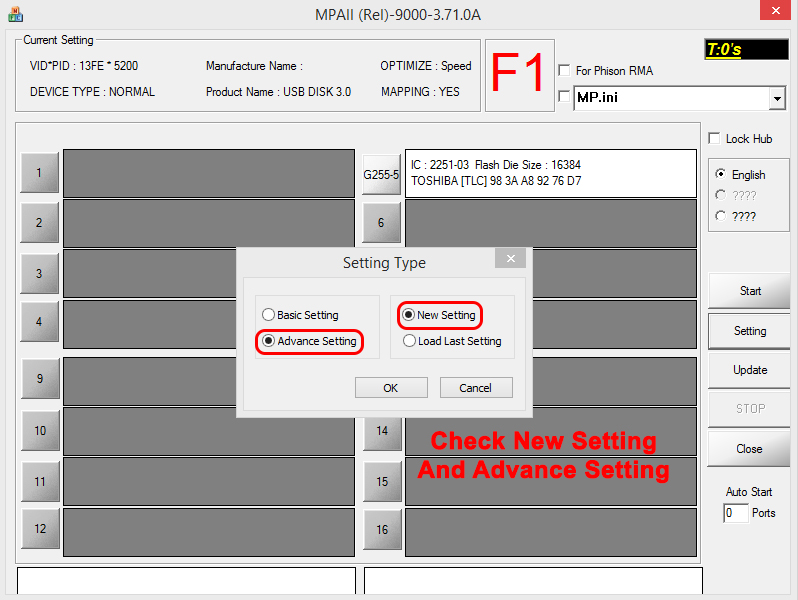

badrec55

badrec66

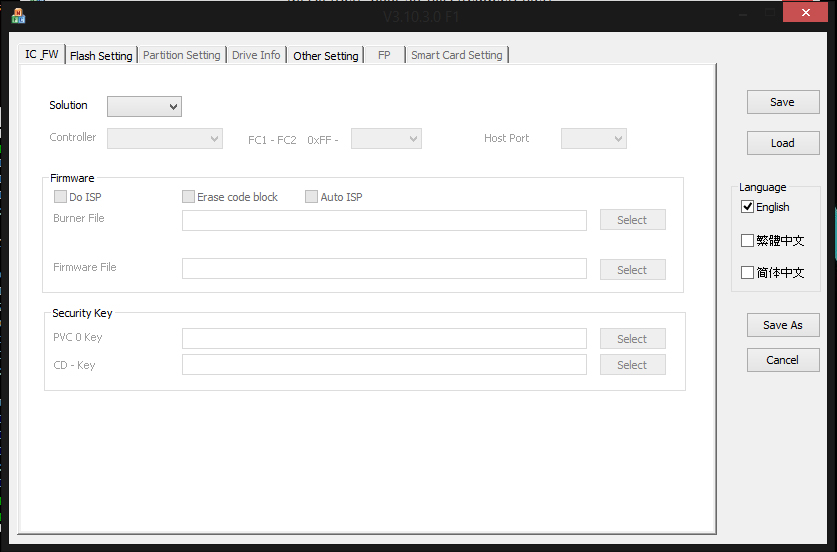

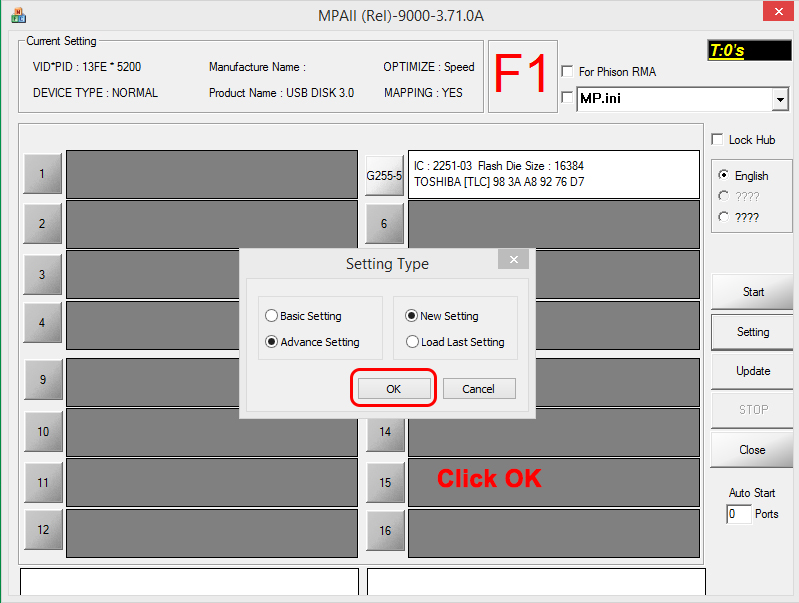

u should then come to this window

badrec7

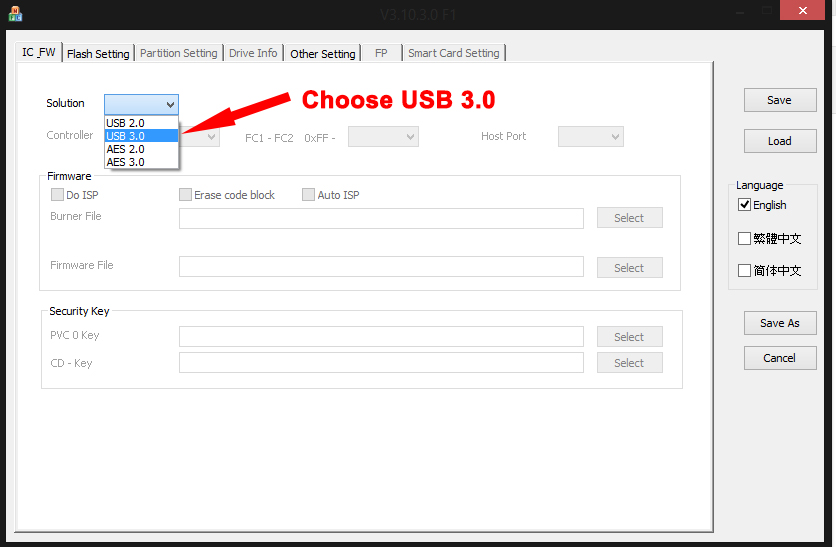

badrec8

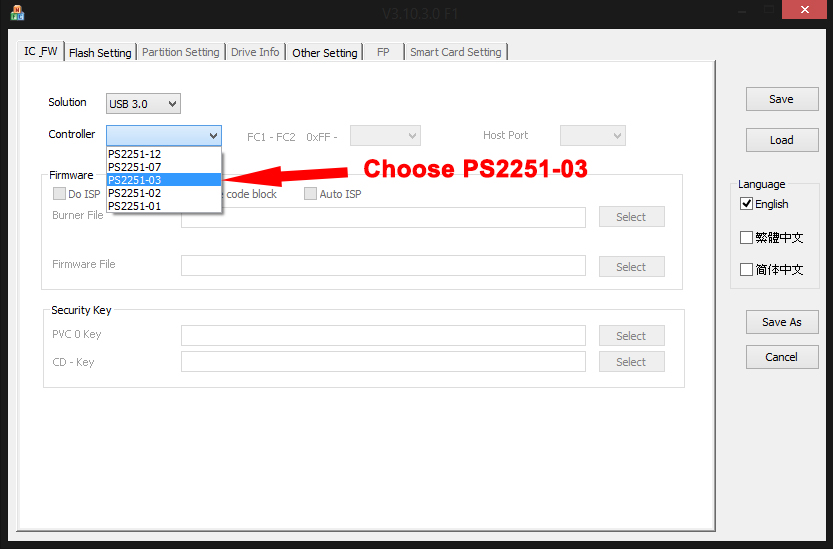

badrec9

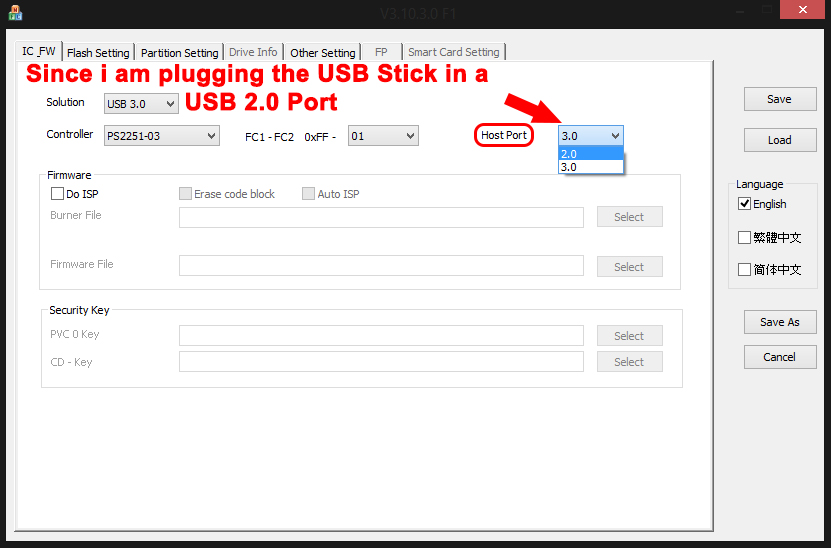

badrec10

badrec11

badrec12

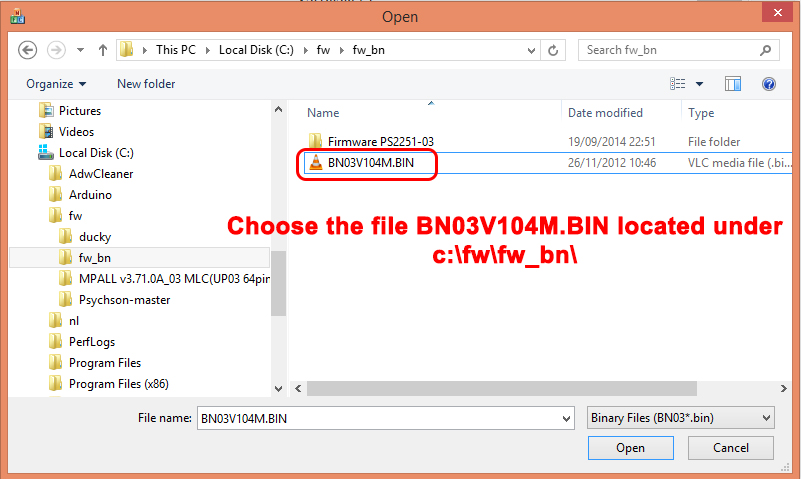

badrec13

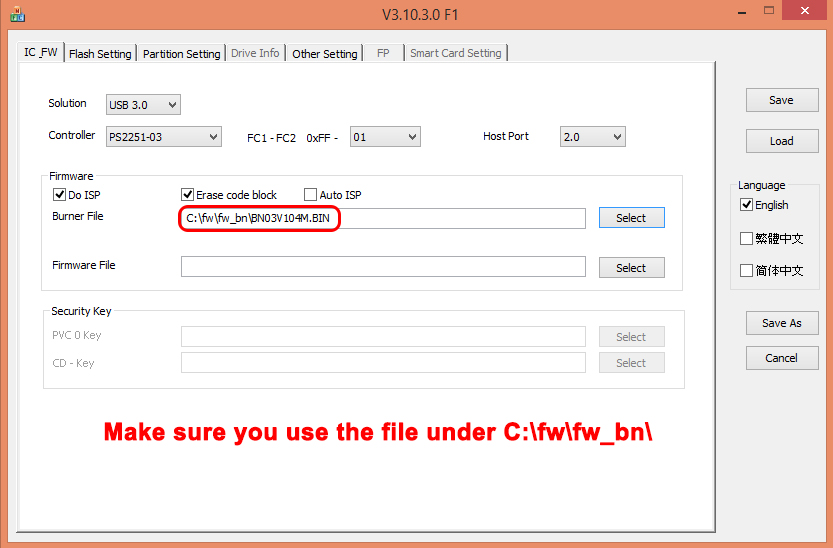

badrec14

badrec15

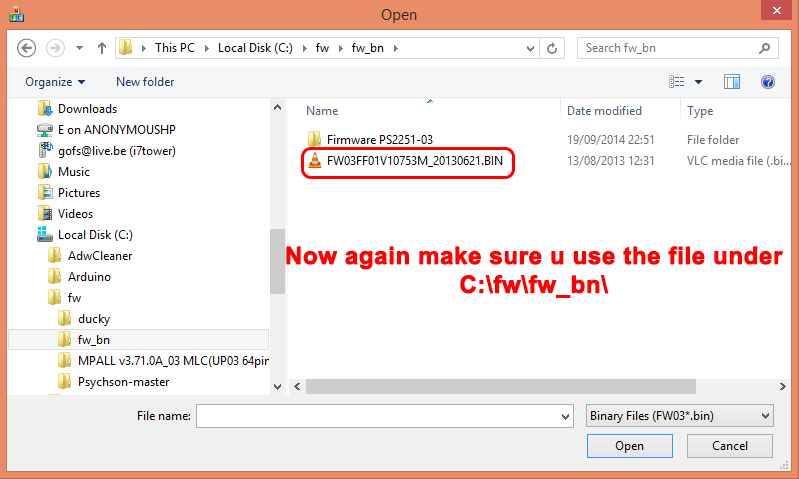

badrec16

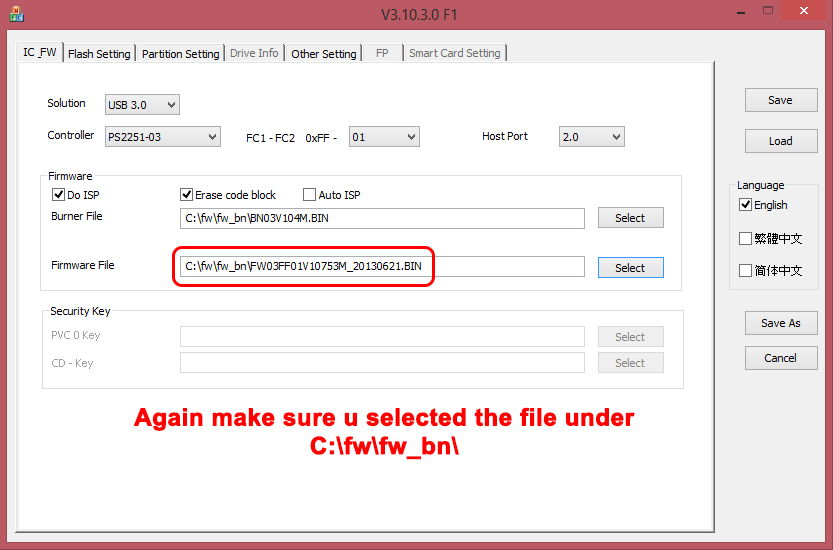

badrec17

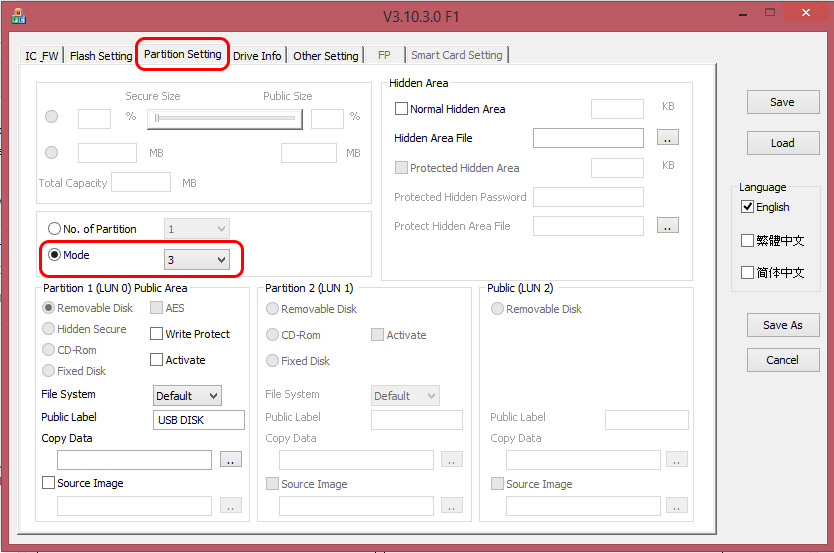

badrec18

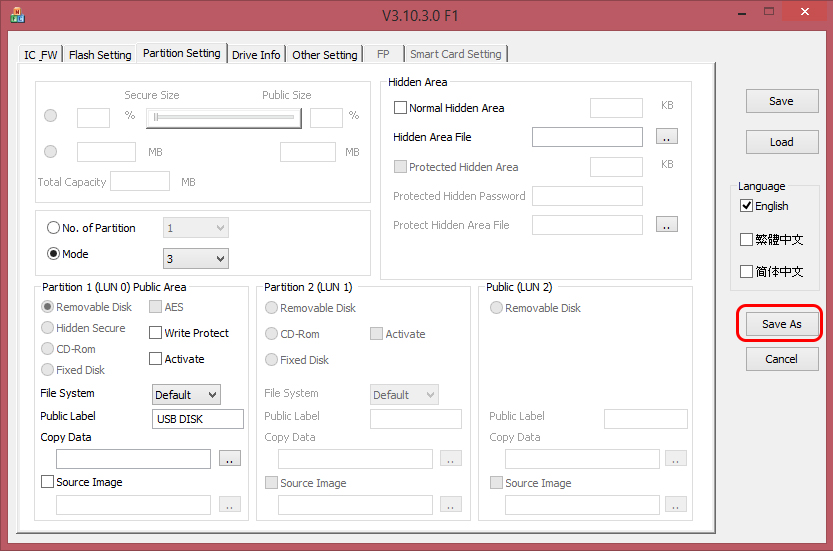

badrec19

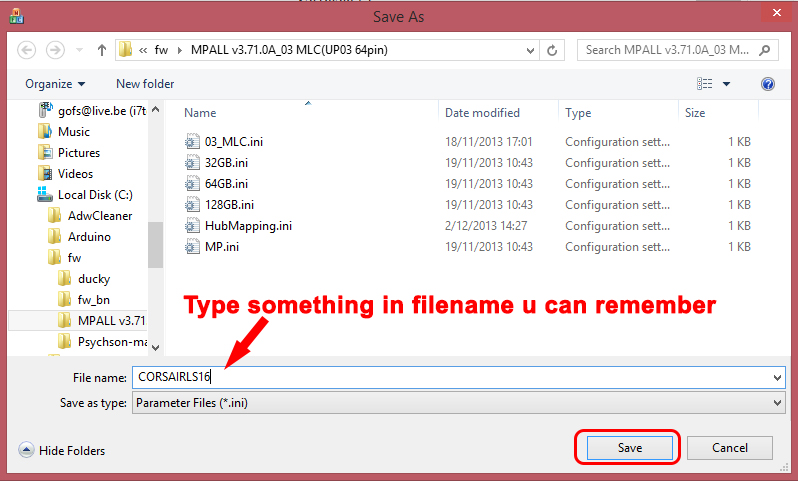

badrec20



badrec21



badrec33

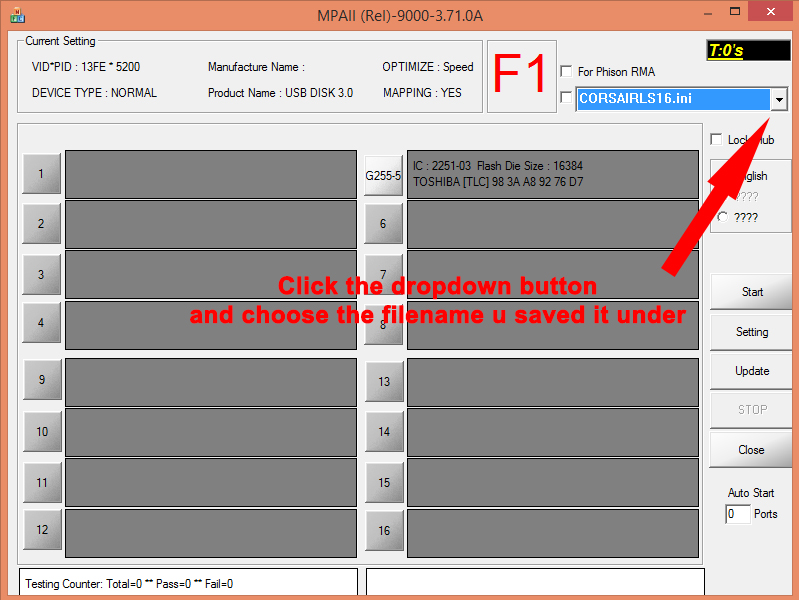

badrec22

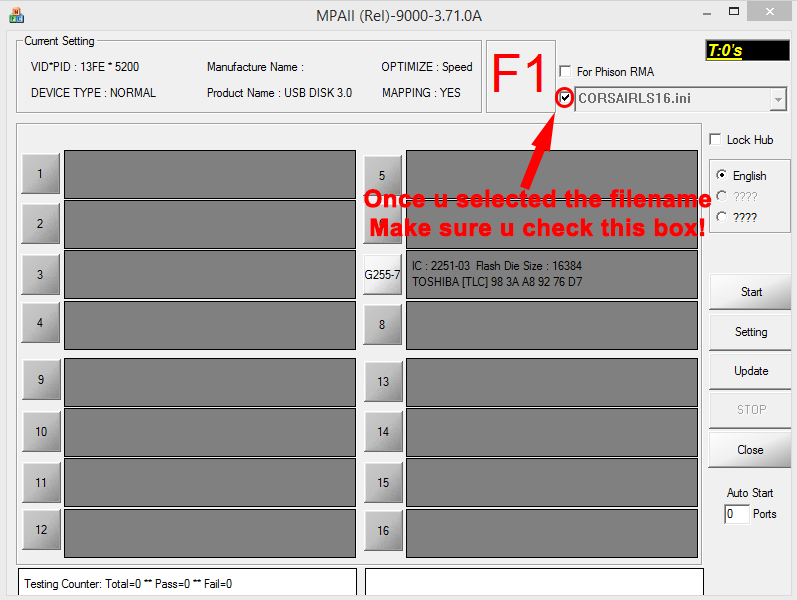

badrec23

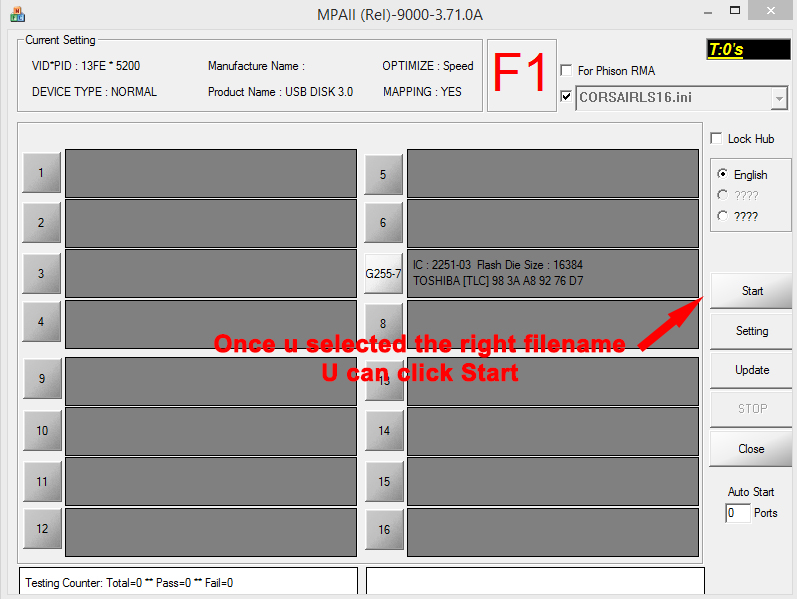

badrec24

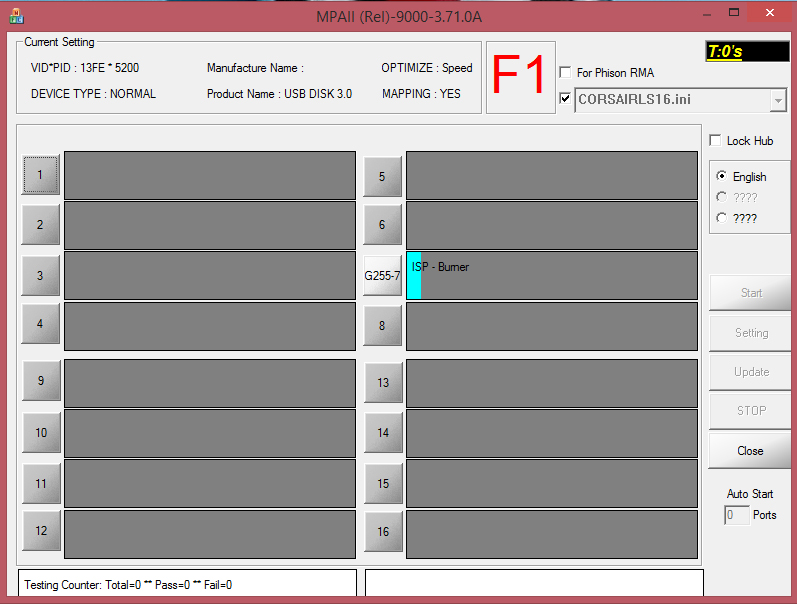

badrec25

badrec26

badrec27

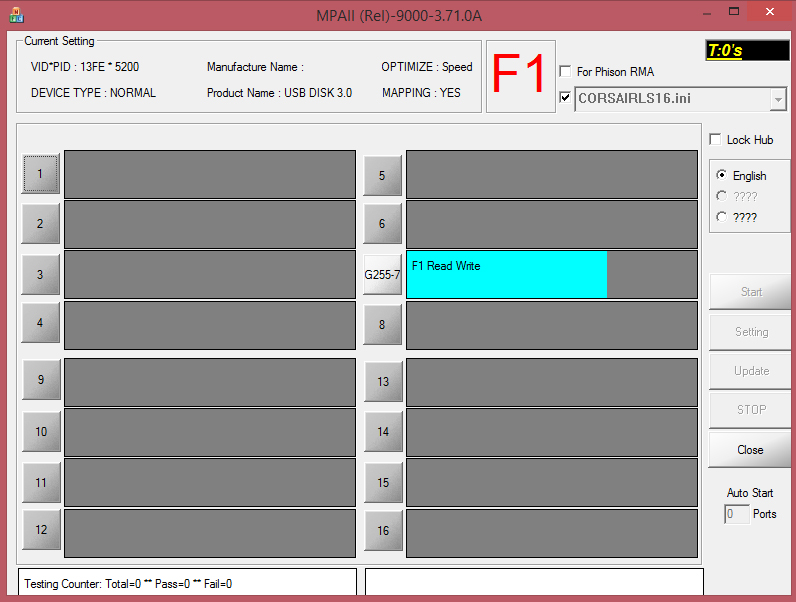

badrec28

badrec29

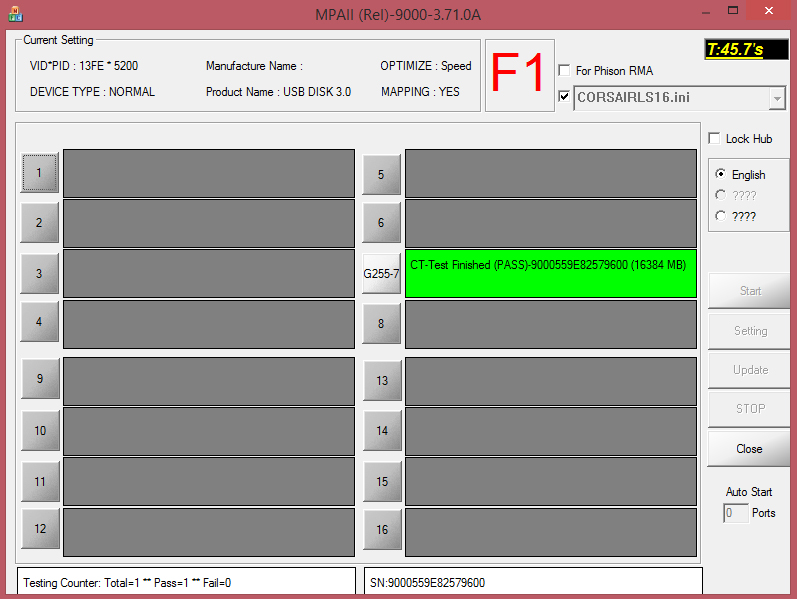

U now successfully flashed the USB Stick back to stock!

41 Responses to “Recover a USB Stick”

  1. Arnoldo Machado March 21, 2016 at 5:50 pm Permalink

    I have got the MPALL program but when I plug the USB into the computer I got the following message F: Mode 255 ID Error 000

    • pentestshop March 27, 2016 at 7:26 pm Permalink

      Did u short the pins while plugging it in? And are you sure u have a Phison 2251-03 ?

  2. Carlo April 3, 2016 at 6:12 pm Permalink

    Hi pentestshop,
    the progress bar hang at “ISP – Firmware” and, after a while, show the error message “CT – Read OnlyPage” with red background.
    What can I do to solve this problem?

    Thank you in advance,
    Carlo

    P.S.: I transformed Kingston DT R3.0 into Duck after the S.O. doesn’t mount and show the drive…

    • pentestshop April 3, 2016 at 9:49 pm Permalink

      Hi Carlo,
      Make sure u have selected the right Burner Image
      and the correct firmware file
      and that all the other settings are correct.
      If you still have problems i would love to take a look at it using Teamviewer
      Then contact me at pentestingshop@gmail.com

  3. Datife April 21, 2016 at 11:16 pm Permalink

    Hi guys , how do to short the two pins ????? It’very very very difficult for me , you know tell me how to do easy tips??

    • pentestshop April 22, 2016 at 5:28 am Permalink

      It’s indeed difficult to keep shortening the pins while plugging it in,but i’m afraid there is no other option..You could try to solder 2 wires on the pins..But i dont know how good your solder skills are.

      • Datalife April 22, 2016 at 7:33 am Permalink

        the origianl usb duky is not in stock ?

      • Datalife April 22, 2016 at 7:42 am Permalink

        the solder on two pins can always be welded or it must be whenever detached ??

        • pentestshop April 22, 2016 at 7:47 am Permalink

          Just solder the wires on the 2 pins and strip the other end and shorten them only when u need to reflash the stick back to normal.

          • Datalife April 22, 2016 at 7:59 am Permalink

            thanks a lot 😉 but i have the last question … you assure me that the pins to solder are the second and third ?? beacause in another tutorial i have read that are the 1&2 … i have usb stick DataTravel DT111 with Phison 2251-03

          • pentestshop April 23, 2016 at 2:28 pm Permalink

            No its pin 2 and 3 for a Corsair at least

  4. Datalife April 23, 2016 at 2:24 pm Permalink

    hi guys , i have a Datatraveler 111 8gb with Phison 2251-03 :

    Device Vendor: Phison
    Device Name: 2303 Boot ROM
    Device Revision: 0110
    Product Model: 2303 PRAM
    Product Revision: 1.00
    Chip Vendor: Phison
    Chip Part-Number: PS2251-03(PS2303) – F/W 01.01.10 [2012-04-09]

    I follow the tutorial for recover a usb-stick but when Start the recover , show this error : CT 0x1049 ( look the image ) http://i64.tinypic.com/25u6sdt.jpg

    Can you help me please 🙁 ??????

  5. Dj October 13, 2016 at 1:46 am Permalink

    Did I miss it somewhere it says that be sure to have EVERY payload you want when you create the Rubber Ducky because reverting it to add more payloads is a nightmare?!

  6. iven December 16, 2016 at 12:30 pm Permalink

    please can help to get Burner and firmware for

    Volume: H:
    Controller: Phison 2251-61 (2261)
    Possible Memory Chip(s):
    Toshiba TH58NVG7T2HTA20
    Toshiba TC58NVG6T2HTA00
    Memory Type: TLC
    Flash ID: 98DE9892 7256
    Chip F/W: 01.01.10
    Firmware Date: 2011-01-26
    MP Ver.: MPALL vFF.FF.FF
    VID: 13FE
    PID: 3E00
    Manufacturer:
    Product: 2261 PRAM
    Query Vendor ID:
    Query Product ID: 2261 PRAM
    Query Product Revision: 1.00
    Physical Disk Capacity: 0 Bytes
    Windows Disk Capacity: 0 Bytes
    Internal Tags: 2QAF-AV3L
    USB Version: 2.00
    Declared Power: 50 mA
    ContMeas ID: C201-07-00
    Microsoft Windows 10 x64 Build 10586
    ————————————
    http://www.antspec.com/usbflashinfo/
    Program Version: 8.7.0.597

    • pentestshop December 17, 2016 at 3:01 am Permalink

      You are trying to do it with a wrong nand chipset, sadly it only works with the Phison 2251-03 nand

  7. Macke January 3, 2017 at 4:10 pm Permalink

    I really need some help with the recovery of my usb stick. When i plug it in and shorted the pins it will just shows this.
    https://gyazo.com/6a912a47c368aef05721037a95b14f82

    • pentestshop January 4, 2017 at 12:19 pm Permalink

      i would love to help you,but first tell me what USB Stick you have!..Cause if you have another brand of USB Stick then the one i recommended that u should maybe use another version of MPAll

      • Macke January 6, 2017 at 3:25 pm Permalink

        Yea i have the Patriot Supersonic Xpress 16gb and checked it with GetFlashInfo and it has Phison 2251-03

        • pentestshop January 7, 2017 at 3:12 pm Permalink

          add pentestingshop on facebook and pm me, maybe i can help using teamwiever

  8. piterson January 5, 2017 at 9:54 pm Permalink

    I did everything as told, but when it detects my pendrive (which is recommended Patriot Supersonic Xpress btw) it returns: Mode 255 ID Error 0001.
    Thank you for your help!

    • pentestshop January 5, 2017 at 10:29 pm Permalink

      yeah you may have a Patriot Supersonic Xpress that is indeed in the list on github, but did you check it first with GetFlash info that is has the Phison 2251-03 chipset?
      Cause now these day they deliver them with a Phison 2207 nand chip

  9. dam February 6, 2017 at 9:12 pm Permalink

    I kinda removed the pin 1 and 2 and still it does not work :/

    • pentestshop February 9, 2017 at 3:19 pm Permalink

      U removed the pin1 and 2 ?
      I hope u didn’t break them off 🙂
      U need to short pin 2 and 3 while plugging it in
      use some wire to short pin 2-3 and just plug it in while keeping it shorted

      • Dat Boi April 8, 2017 at 11:04 pm Permalink

        I cannot get the pins to short. Nothing will work without shorting the pins, and they will not short.

  10. db4z March 26, 2017 at 5:30 am Permalink

    Hi, I’ve done all the steps to configure the Kingston DT111 (PS2251-03 (PS2303)), all the steps worked, but when removing and inserting again, the rubber ducky did not work. I thought I did something wrong, so I tried to recover, but my USB does not appear on the MPALL screen (even if I make the short circuit on pin 2 and 3), nothing opens. I connected on linux and tried the command “lsusb” but find nothing, what could have done wrong? How can I check if it does not burn(broke)? Thank you for you help.

    • pentestshop March 26, 2017 at 11:41 am Permalink

      That’s weird, did you try other USB Ports as well?
      And did u short the pins correctly?
      Also if the Kingston DT111 is a USB 3.0 stick (Blue USB Plug) u need to use a USB 3 port to connect to MPALL
      And did u checked the chipset using the Getflash info tool, or did u assume it has the PS2251-03 chipset?

      • db4z March 27, 2017 at 6:28 am Permalink

        Yes I tried all ports, try with a normal pen drive and they are all working, when I insert the normal pen drive in linux and give the command “lsusb” the new device appears but with the USB that I modified nothing happens.
        About the short circuit I was trying with other pins, I was making the wrong short circuit and after I tried on pins 2 and 3, so I think I should have burned the chip when I made the short circuit on the wrong pins . I did setup on MPALL USB 3 and USB 2 as well.
        Before starting the all procedure, I checked the chipset and it`s PS2251-03 (PS2303) with firmware of the year 2012.
        I have a rubber ducky deluxe from hak5, but for a long time I’ve been looking for a pen drive to make my own rubber ducky. Unfortunately I’m having a hard time finding a pen drive with this chipset, it was more than 1 month searching on ebay for a used pen drive with this chipset. Do you know of any site where I can find a pen drive with this chipset?
        Thank very much for your attention.

  11. HS March 26, 2017 at 1:46 pm Permalink

    My memory is 2303 and short pin 2 and 3 while plugging
    But when push start button, CT. 0x0040 was showed in the box not CT. Test finished ~~
    I’m finding some document on google but not easy to find something can help.
    Do you know what’s wrong??

    and during working(actually i just try to input other bin file), my memory was not recognized. But short pin 2 and 3, sometimes it was recognized.
    Can I back to work??

    • pentestshop April 9, 2017 at 7:08 pm Permalink

      Sorry but do not try to do it with that stick..I can not help with that kind

  12. bto April 26, 2017 at 7:25 pm Permalink

    What can I do if I get a this message: “Flash No Suppot”

    • pentestshop May 13, 2017 at 9:12 pm Permalink

      Did u use a USB Stick with a Phison 2251-03 nand chip? And if so try looking for another version of Phison MPALL and always use the right burner image and firmware for your USB Drive!

  13. Javi May 10, 2017 at 7:22 am Permalink

    Hi pentestshop, thank you for your guides. They are greats and very detailed.

    I created the rubber duck from a pendrive and it worked successfully.

    Although I tested the device with two laptops with Win7 and Win8.1 and it doesn’t work on Win8.1 and in Win7 it only works on some USB ports, not on all of them. Windows doesn’t install the same drivers for all USB ports, so sometimes Windows doesn’t recognise the device. Is this usual? If I bought the original rubber duck would the same happen? or would it work better?

    I’d like to test another payload. I’m following this guide. I got a question about: ‘Keep shorting this pins while plugging in the USB Stick’
    Should I short the pins 2 and 3 only when I plug the device and until I press Update, or should I keep shorting the pins the whole time the device is plugged?

    Thank you in advance.

    • pentestshop May 13, 2017 at 9:26 pm Permalink

      Thank you Javi for the kindly comment
      And i never experienced the problem that it works on some port’s and not all.
      If u buy a real USB Rubber Ducky u wont experience that problem i guess
      And about your question how u should shorten the pins
      Yes u only short the pins 2 and 3 while plugging it in and until you see the Drive listed in the Phison MPALL software

  14. Javi May 10, 2017 at 5:08 pm Permalink

    Hi, I’ve tried the recovery way, shorting pins 2&3 the whole time, if not the payload was loaded.

    But when I click on update the field that is filled is G255-2 and inside appears:

    Driver : G: Mode 255
    ID Error 0001 [ 0 0 0 0 0 0 0]
    You can see a screenshoot here: https://ibb.co/hLTrt5

    I tried to follow the rest of the process: settings, save, start… but nothing happens.

    I also tried it with pins 1&2 but the app doesn’t recognise it.

    What am I doing wrong?

    Thank you.

    • pentestshop May 13, 2017 at 9:28 pm Permalink

      Keep trying or try looking for another version of Phison MPALL that has support for a Phison 2251-03
      Shortening the pins is a pain sometimes, but if u do it right u should get it working

  15. P. White June 2, 2017 at 5:55 pm Permalink

    This is how I shortened the 2 and 3 pins on my Corsair Voyager LS 16:

    1. Take a small flathead screwdriver screw driver (like this one: https://www.aliexpress.com/item/Mini-Flathead-screwdriver-Straight-screwdriver-Slot-type-Screw-driver-for-iPhone-Cell-phone-Factory/901606546.html?spm=2114.40010408.3.25.6a6DhV)

    2. Put the USB stick close to the insertion port – don’t plug it in. It should only touch the port.

    3. Put the flathead screwdriver firmly, but not too firmly (you don’t want to destroy the circuit board), and push in the USB stick.

    4. Click ‘Update’ in the MPAII program and you should be good to go.

    Disclaimer: I take no responsibility if you ruin your USB stick. Proceed at your own “USB” risk.

    • P. White June 3, 2017 at 3:58 pm Permalink

      Note to step 3: Put the flathead screwdriver firmly between pin 2 and 3 to create a bridge between the pins.
